Flame Arresters and Low Pressure Venting Equipment

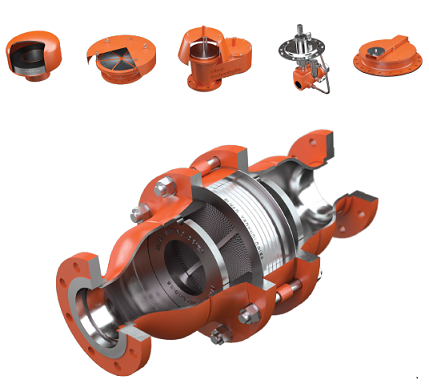

In-line Deflagration and Detonation Flame Arresters

Elmac Technologies  is renowned for bringing enhanced levels of safety and         protection to the world’s most challenging industrial environments.Our comprehensive range of ATEX accredited Flame Arresters and low pressure venting equipment are suitable for a wide variety of applications and conditions.

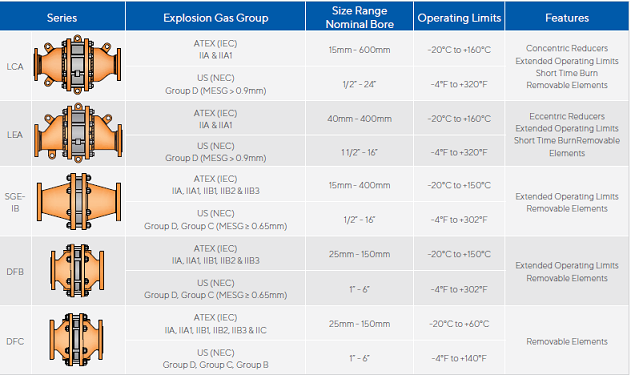

In-line Flame Arresters

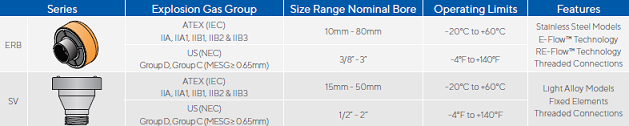

In-line Microbore Flame Arresters

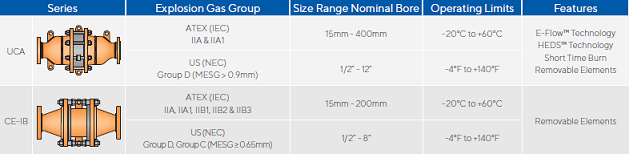

In-line Unstable Detonation Flame Arresters

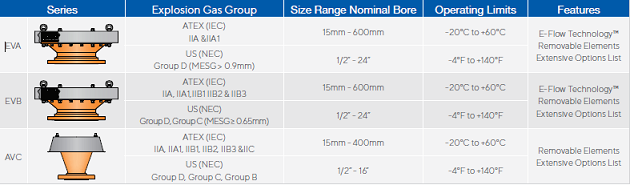

End-of-line Flame Arresters

Light Duty End-of-line Flame Arresters

High Temperature End-of-line Flame Arresters

Short Time Burn End-of-line Flame Arresters

End-of-line Flame Arresters for use with Pressure/Vacuum Relief Valves

Low Pressure Equipment

Storage Tank and Vessel Protection

Elmac’s low pressure equipment is designed to protect tanks from rupture or implosion during filling and/or emptying cycles.They limit product loss and environmental discharges whilst also protecting tanks during thermal changes.

Pressure/Vacuum Relief Valves Tank Blanketing Valves                     Bursting Discs

*Pressure-only, vacuum-only or combined *Control oxygen concentration in tank by       *Wide choice of materials

*Weight or spring loaded                        preventing the ingress of air and designs

*50mm - 300mm                                 *Protects product from contamination * Forward and reverse acting

*2” - 12” and moisture *10mm - 400mm

*Reduce product evaporation * 3/8” - 16”

*15mm - 50mm    *1/2” - 2”

Emergency Relief Vents                                Gauge Hatches Vents

*Pressure relief emergency manways        * For measurement and sampling             *Free vents for tank breathing

*Suitable for biogas digester applications   *Safety pedal for ‘hands-free’ operation    *Wide range of sizes/materials

*Available with vacuum relief option         *Pressure relief option available               *Customised designs for individual

*250mm - 900mm   *10” - 36”           * 100mm - 250mm * 4” - 10” applications *50mm - 300mm  * 2” - 12”

Ancillary Equipment

Thermocouples                                  Proximity Switches                      Flashback Guards

*ATEX rated for use with flame arresters     *For use with low pressure venting *304L and 316L stainless steel

* Temp. measurement of process flow equipment for the detection of *Knitted mesh panels

*Tailored to customer requirements pallet lift * Customised design for individual

* ATEX rated for installation in zoned applications

areas *Tailored frames and mountings

* Easy integration with existing on-site

Process  controls
